- 更新时间：2023-01-16 21:31:02

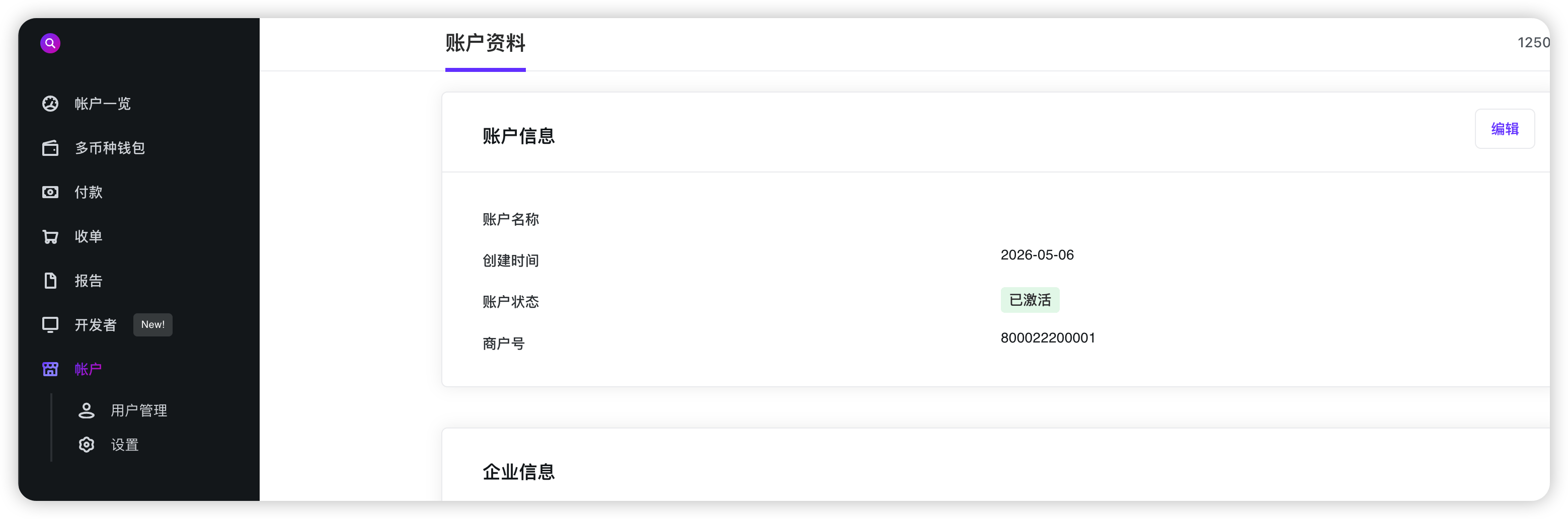

获取商户自助平台账号
合作确认后，Payloco 合规审核KYC材料。 通过后邮件通知，请确保密码安全，以防外泄。获取商户Id和秘钥

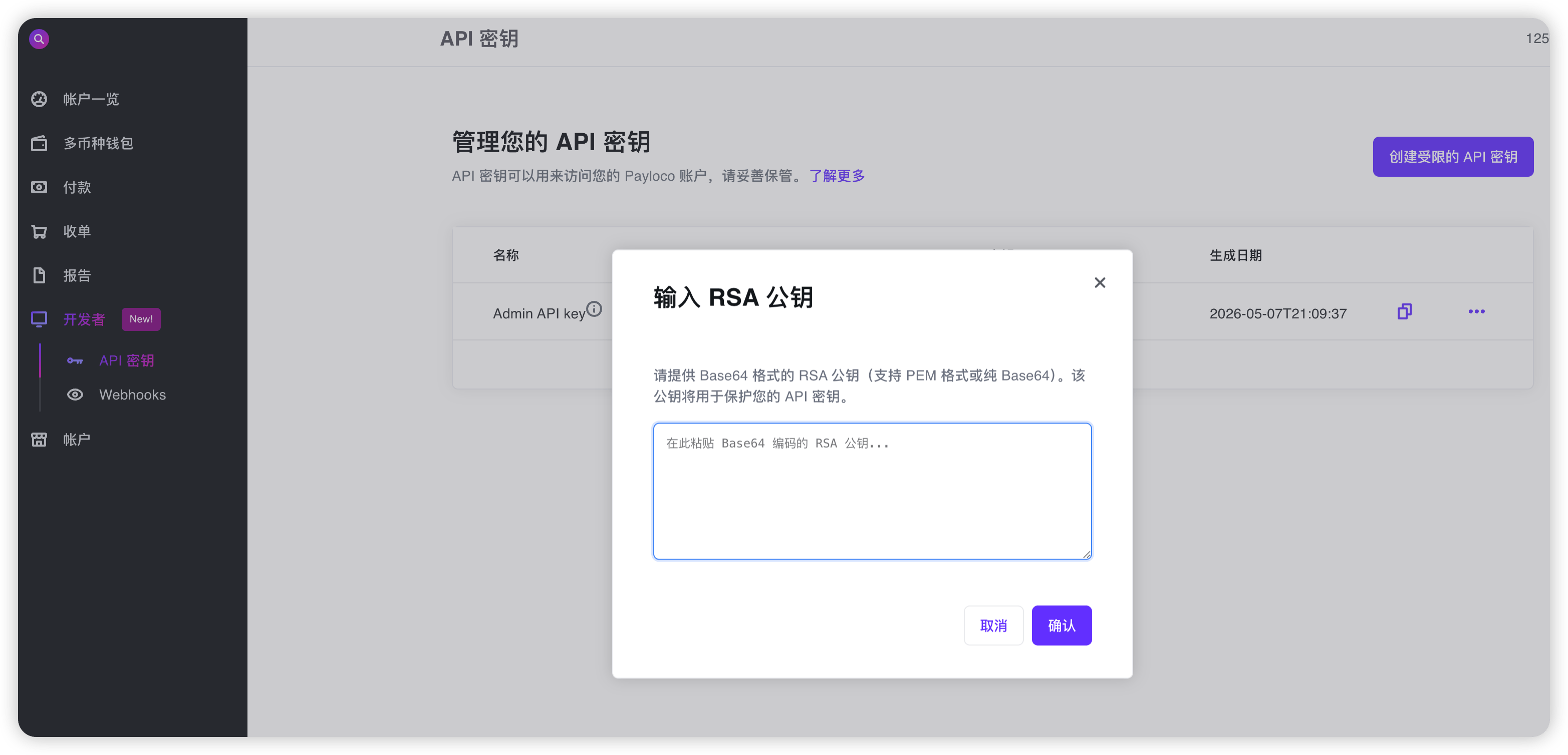

联调接入所需的商户Id，可通过商户管理平台获取。 签名使用的是SHA256WithRSA签名算法，需要商户自行生成公私钥信息，并将公钥通过商户管理平台上传。请妥善保管密钥信息，若不慎泄漏密钥，请及时更新密钥。 商户号:
配置密钥之前必须开启。双重身份验证 (2FA)
配置异步通知地址
回调地址用于接入方服务端接收来自 Payloco 服务端提供的订单异步回调结果。 该地址可通过调用接口的对应参数提交，也可通过商户管理平台设置。 其中，接口提交的回调地址优先于商户管理平台内的设置入口:「商户管理平台」-「开发者」-「Webhooks」 菜单。
Webhooks密钥也是在该处查看。
公钥和私钥配置
公钥和私钥的作用
如何生成公钥私钥
商户公私钥可通过如下三种方式进行生成（任选其一即可），生成的商户私钥请商户自己妥善保管，用于请求Payloco报文的加签操作，商户公钥通过Merchant Dashboard平台上传给Payloco用于验证商户签名防止报文在网络传输过程中被篡改，同时在平台上获取Payloco公钥放到自己程序中，用于验证Payloco加签报文的签名。在线生成密钥对
通过Payloco提供的开发者工具，在线生成密钥对，工具为纯js实现不会和Payloco服务器进行交互，不会泄露商户密钥信息。 生成地址SDK生成
SDK提供了开发相关工具类中的createKeyPair方法或者函数也可以生成。 Java SDK | Php SDKimport java.security.*;
public class GenerateRSAKeyPair {
public static void main(String[] args) throws NoSuchAlgorithmException {
// Generate an RSA key pair
KeyPairGenerator keyPairGenerator = KeyPairGenerator.getInstance("RSA");
keyPairGenerator.initialize(2048); // You can change the key size as needed (2048 bits is recommended)
KeyPair keyPair = keyPairGenerator.generateKeyPair();
// Get the public and private keys
PublicKey publicKey = keyPair.getPublic();
PrivateKey privateKey = keyPair.getPrivate();
// Print the keys (just for demonstration)
System.out.println("RSA Public Key:");
System.out.println(Base64.getEncoder().encodeToString(publicKey.getEncoded()));
System.out.println("\nRSA Private Key:");
System.out.println(Base64.getEncoder().encodeToString(privateKey.getEncoded()));
}
}
openssl生成
通过openssl命令生成pem公私钥文件并手动去除开头、结尾、换行符得到公私钥信息。 下载并安装openssl，参考文档：https://www.openssl.org/source/ 执行如下命令：#私钥
openssl genrsa 2048 | openssl pkcs8 -topk8 -nocrypt -out private.key.pem
#公钥
openssl rsa -in private.key.pem -pubout > public.key.pem
-----BEGIN PUBLIC KEY-----
MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAzN6tx98b4KZB1uqEuT7P
/nWHrYqFdiy+Kzs9KZ6JtSQWb3b45loOsdUxFeaCAt+ZJ0+fNJRDnwc7AiKOlgbw
0HT93WRVZXP6cwQV1Bg1XybBxtQE4OcEq+Uzzmd7RoBkQuNmjIUgDYtWPBSekSpZ
AhWkk4dh8Nd7Qv2BvJNNOISVFcROFgMgbGz80v6WofR4nnTEdTB+j4pR/Q4dhnIR
OlaWrai+hBPn95sahQ+Ujf7LZgLyhpyQeS+/xsLv29lDI6D+8neR1tsOYdOp8f8Q
NwDkOroMlzxkQeYsJDLpLG8p58zHSdcLOsopVe2u41uzdrQ8qjhw4FU9eBOmFite
iwIDAQAB
-----END PUBLIC KEY-----
-----BEGIN PRIVATE KEY-----
MIIEwAIBADANBgkqhkiG9w0BAQEFAASCBKowggSmAgEAAoIBAQDM3q3H3xvgpkHW
6oS5Ps/+dYetioV2LL4rOz0pnom1JBZvdvjmWg6x1TEV5oIC35knT580lEOfBzsC
Io6WBvDQdP3dZFVlc/pzBBXUGDVfJsHG1ATg5wSr5TPOZ3tGgGRC42aMhSANi1Y8
FJ6RKlkCFaSTh2Hw13tC/YG8k004hJUVxE4WAyBsbPzS/pah9HiedMR1MH6PilH9
Dh2GchE6VpatqL6EE+f3mxqFD5SN/stmAvKGnJB5L7/Gwu/b2UMjoP7yd5HW2w5h
06nx/xA3AOQ6ugyXPGRB5iwkMuksbynnzMdJ1ws6yilV7a7jW7N2tDyqOHDgVT14
E6YWK16LAgMBAAECggEBAKFLC8yZdixHGPzohHgH4N94jsptjae9kDcfG4dB3y8y
60r0gv9wlbMiotOYOHGkssKFaFWQCTESEz4aEOJDMqMcCKaeELGgPuUAqWLjcFmq
fNNaJ0EeAMqI2GG/jQmzmbwjpqApS1P+iHUi0rh9e7gta/YOl2hzbgMO7W6XFivQ
pMIQZQE0WpmpK8cNgev/Xog8ZnHFC6XGUgK+mDVvJMYwmywUPIfLw2fvAZ29Qogt
qiGeFCJSwAL1VkxryXSjJJBKuoc3cXEcq/hjhz6G9rvd50Lj2kCWMd8iqm/dtFyh
DnT5WSFYNPIH0Up9qtqeP+TqgI/SrztAVHgUXVB2ABkCgYEA9cSeHG04Pj3p9ZCe
Cc6qb6L2kFphb62BhmUSHZ50p6X1KsSMw4wnzbrgrvcSe97iWZNLC536eQVHE5gL
4ZjIxylYkp+FuuPHMIDseASR2pNmY2sJ83iTB4C9Y+37+64wBceFiXWBERdJA1t2
MnzWLR8ijFfmHQ4KX3DJOhR05qUCgYEA1WYroahttPyvMFHdmcCphF9jhF3U6SGu
VndwTtqaGLHzCmSvHxLFyd8ziw/F344IGIn8fIbOqhFAijyliD53kGMiKSUqMH4Q
eP2RfxGrZqek3f6pvyUtxfjXAh6+7pfL46u0AzmyvcpaGXqQToecCF43MCdbxh7Z
3CViGfBcWW8CgYEAvJRcufU4ddHuJoYMLfxNHRIPXV5sa1PYEjaVevKuEkGuaF2e
oSF3HU4qvzZIEZJJXnA94jEbEydwjWFapIUmcmOQWhlbdLb4jYgvajwfanc11k04
uoAnWVd4eygN9OWIZbbeCUaHfYS/ensAq+bMNJ0yVjvQDzVJ0kfpr84okR0CgYEA
mBroNKTx9ZQ6Zu2jT2lVKuY27+1VygpY0ob1xS7psXp9asYTUMm3s0ll2tQWTV9W
g+8uya/o9K2xXBcYQgGMhZ0zhzJXXRMuOJ88qt70VgpeaGGRqo4cj0TsNDWoEDag
fJoxiC8DKWZnTEvhOihM3mYRXkBfmNr6nIEE6Mo7eP8CgYEA8KqzIk+5On3xmeES
fQcLPYiaO9Hlttc7flyIpUL52Og7S1T/ekdiBVIDlePpjRx5H0iCtANyWmQq0Xbf
SseQ9SFJ/4DLvDMawhvolmxHs98PNa8xZ9KdXgUNc7RcewUVhK2aLkxUQKNO0lww
GGDGWfvePWzlVotJd0bM+a/X4qg=
-----END PRIVATE KEY-----
注意：PKCS8需要去除开头、结尾、换行。
MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAzN6tx98b4KZB1uqEuT7P/nWHrYqFdiy+Kzs9KZ6JtSQWb3b45loOsdUxFeaCAt+ZJ0+fNJRDnwc7AiKOlgbw0HT93WRVZXP6cwQV1Bg1XybBxtQE4OcEq+Uzzmd7RoBkQuNmjIUgDYtWPBSekSpZAhWkk4dh8Nd7Qv2BvJNNOISVFcROFgMgbGz80v6WofR4nnTEdTB+j4pR/Q4dhnIROlaWrai+hBPn95sahQ+Ujf7LZgLyhpyQeS+/xsLv29lDI6D+8neR1tsOYdOp8f8QNwDkOroMlzxkQeYsJDLpLG8p58zHSdcLOsopVe2u41uzdrQ8qjhw4FU9eBOmFiteiwIDAQAB
MIIEwAIBADANBgkqhkiG9w0BAQEFAASCBKowggSmAgEAAoIBAQDM3q3H3xvgpkHW6oS5Ps/+dYetioV2LL4rOz0pnom1JBZvdvjmWg6x1TEV5oIC35knT580lEOfBzsCIo6WBvDQdP3dZFVlc/pzBBXUGDVfJsHG1ATg5wSr5TPOZ3tGgGRC42aMhSANi1Y8FJ6RKlkCFaSTh2Hw13tC/YG8k004hJUVxE4WAyBsbPzS/pah9HiedMR1MH6PilH9Dh2GchE6VpatqL6EE+f3mxqFD5SN/stmAvKGnJB5L7/Gwu/b2UMjoP7yd5HW2w5h06nx/xA3AOQ6ugyXPGRB5iwkMuksbynnzMdJ1ws6yilV7a7jW7N2tDyqOHDgVT14E6YWK16LAgMBAAECggEBAKFLC8yZdixHGPzohHgH4N94jsptjae9kDcfG4dB3y8y60r0gv9wlbMiotOYOHGkssKFaFWQCTESEz4aEOJDMqMcCKaeELGgPuUAqWLjcFmqfNNaJ0EeAMqI2GG/jQmzmbwjpqApS1P+iHUi0rh9e7gta/YOl2hzbgMO7W6XFivQpMIQZQE0WpmpK8cNgev/Xog8ZnHFC6XGUgK+mDVvJMYwmywUPIfLw2fvAZ29QogtqiGeFCJSwAL1VkxryXSjJJBKuoc3cXEcq/hjhz6G9rvd50Lj2kCWMd8iqm/dtFyhDnT5WSFYNPIH0Up9qtqeP+TqgI/SrztAVHgUXVB2ABkCgYEA9cSeHG04Pj3p9ZCeCc6qb6L2kFphb62BhmUSHZ50p6X1KsSMw4wnzbrgrvcSe97iWZNLC536eQVHE5gL4ZjIxylYkp+FuuPHMIDseASR2pNmY2sJ83iTB4C9Y+37+64wBceFiXWBERdJA1t2MnzWLR8ijFfmHQ4KX3DJOhR05qUCgYEA1WYroahttPyvMFHdmcCphF9jhF3U6SGuVndwTtqaGLHzCmSvHxLFyd8ziw/F344IGIn8fIbOqhFAijyliD53kGMiKSUqMH4QeP2RfxGrZqek3f6pvyUtxfjXAh6+7pfL46u0AzmyvcpaGXqQToecCF43MCdbxh7Z3CViGfBcWW8CgYEAvJRcufU4ddHuJoYMLfxNHRIPXV5sa1PYEjaVevKuEkGuaF2eoSF3HU4qvzZIEZJJXnA94jEbEydwjWFapIUmcmOQWhlbdLb4jYgvajwfanc11k04uoAnWVd4eygN9OWIZbbeCUaHfYS/ensAq+bMNJ0yVjvQDzVJ0kfpr84okR0CgYEAmBroNKTx9ZQ6Zu2jT2lVKuY27+1VygpY0ob1xS7psXp9asYTUMm3s0ll2tQWTV9Wg+8uya/o9K2xXBcYQgGMhZ0zhzJXXRMuOJ88qt70VgpeaGGRqo4cj0TsNDWoEDagfJoxiC8DKWZnTEvhOihM3mYRXkBfmNr6nIEE6Mo7eP8CgYEA8KqzIk+5On3xmeESfQcLPYiaO9Hlttc7flyIpUL52Og7S1T/ekdiBVIDlePpjRx5H0iCtANyWmQq0XbfSseQ9SFJ/4DLvDMawhvolmxHs98PNa8xZ9KdXgUNc7RcewUVhK2aLkxUQKNO0lwwGGDGWfvePWzlVotJd0bM+a/X4qg=
使用商户私钥进行加签的报文字符串要保证和http body中的字符串是一致的，否则会导致Payloco验签不通过。比如下面两个json内容含义一致，但是因为格式化原因导致加签结果是不一致。
您可以通过开发者【自助加签小工具】体验加签过程。
{
"key1":"val1",
"key2": "val2",
"key3": "val3"
}
使用示例私钥加签结果：
"FPFVT3o227JrFRbqu19boZCpVVTF9KznxyRawUmxpfXilHV/0yK46haPhAjNu1hPUMy7Vw/ILXhfzffNm4Fj0apWknlTY9OJxnSoQxS9BTFtc61tn5yV1q69x/kkBl82/qwg+XTJ4fOzy7Mar3VaC1E2PlDA6RkkKBUyNE6RYgsdB+Su7an4+4HVTNAnoe74WyvBgxTLMNg28igBTdqxaO3w/UBY6ObVp7vkqkQGdL1Y+HgmMYaAVwrM3+ALWGId0sJ+YqTY4WJ+0xCRGhaSnybiIjZsQEYyID68WNUfuavDLDsEhaMm/HfQvf5p0R1Ltovp3wwJnEbQcjY458iX5A=="
{"key1":"val1","key2":"val2","key3":"val3"}
使用示例私钥加签结果：
"W/unZQUH9366PZDhYlCghA7q66VmPDBN/7OvVKhigQNfLJPxGnbhrH6JV4rYlsyfduPt4QKZalaafvs/tJ+CVOr2RGt3815hcAPB7MN/u4y3W+IfbwTXkT7gWujT652YDfMls2dwRCYun++DSOVFHkP8FUp8/Rb6e8CuKbA40RwfHfUTek24TMq0JmiYZDfRYbMUE30Pm8PXDAStoTTOqjJ+5zVAMWCzUwId1/P3iNWue+DUwCyLEA6tHFIJX8dUoSlbtjRs1p4Q8ahSFg5Dx+RORtLclnp8g38hgWFNsvcSuW3RXTkwIYmmbp5Qguw16af9P8Li82zI4M8TqgI08g=="
签名算法
| 类型 | 说明 |
|---|---|
| 算法 | RSA |
| Key格式 | PKCS8 |
| 签名算法 | SHA256WithRSA |
| 密钥长度 | 2048 |
示例报文
请求报文POST https://gate.payloco.com/gateway/v1/payments/open/api/pay
Content-Type:application/json
Content-Length:580
sign:根据请求body使用merchant privateKey签名
{
"charset": "UTF-8",
"version": "2.0.0",
"requestTime": "2022-01-17T08:04:13.879+00:00",
"memberId": "3b242b56a8b64274bcc37dac281120e3",
"merchantId": "020213827212251",
"data": {
"outTradeNo": "Pay1642406653879",
"subject": "MacPro14 and Mouse",
"totalAmount": "10000",
"currency": "IDR",
"country": "ID",
"userId": "10001",
"language": "en",
"reference": "020213827524152",
"frontCallbackURL": "https://www.payloco.com",
"notifyUrl": "https://www.payloco.com"
}
}
POST https://gate.payloco.com/gateway/v1/payments/open/api/pay
Content-Type:application/json
Content-Length:580
sign:根据请求body使用merchant privateKey签名
HTTP/1.1 200 OK
Date:Mon, 17 Jan 2022 03:49:08 GMT
Content-Type:application/json
Connection:keep-alive
sign:Payloco签名信息，商户根据响应json body以及Payloco publicKey验签
{
"code": "00000000",
"message": "Success",
"data": {
"redirectUrl": "https://cashier-n.payloco.com/index.html#/cashier/home?merchantId=020213827212251&appId=3b242b56a8b64274bcc37dac281120e3&country=ID&tradeToken=TOKEN20220117080414618354880&language=en&token=LVDNgrtBcAvo0W6Zjhuons2jfZsEJXgFIAFDLf2Tq2I2FkdUhwF%2Fm8lxxmI1%2BVPfbPafUGFbZfTqagFOD3mMOAKm6790AZi7nuoQbG7SWFIyfD7hr0LbAy9TUpJNjm%2Bsxg2O%2FGvFpzpwP3P1JZxA%2BEajse7sQQubFZhFNGK9o9I%3D&amount=10000¤cy=IDR&frontCallbackUrl=https%3A%2F%2Fwww.baidu.com",
"outTradeNo": "Pay1642406653879",
"tradeToken": "TOKEN20220117080414618354880",
"status": "PENDING"
}
}
